DC12V 24V 36V 4CH Wireless Remote Control LED Light Switch Relay Output Radio Waterproof Transmitter 433MHz Receiver

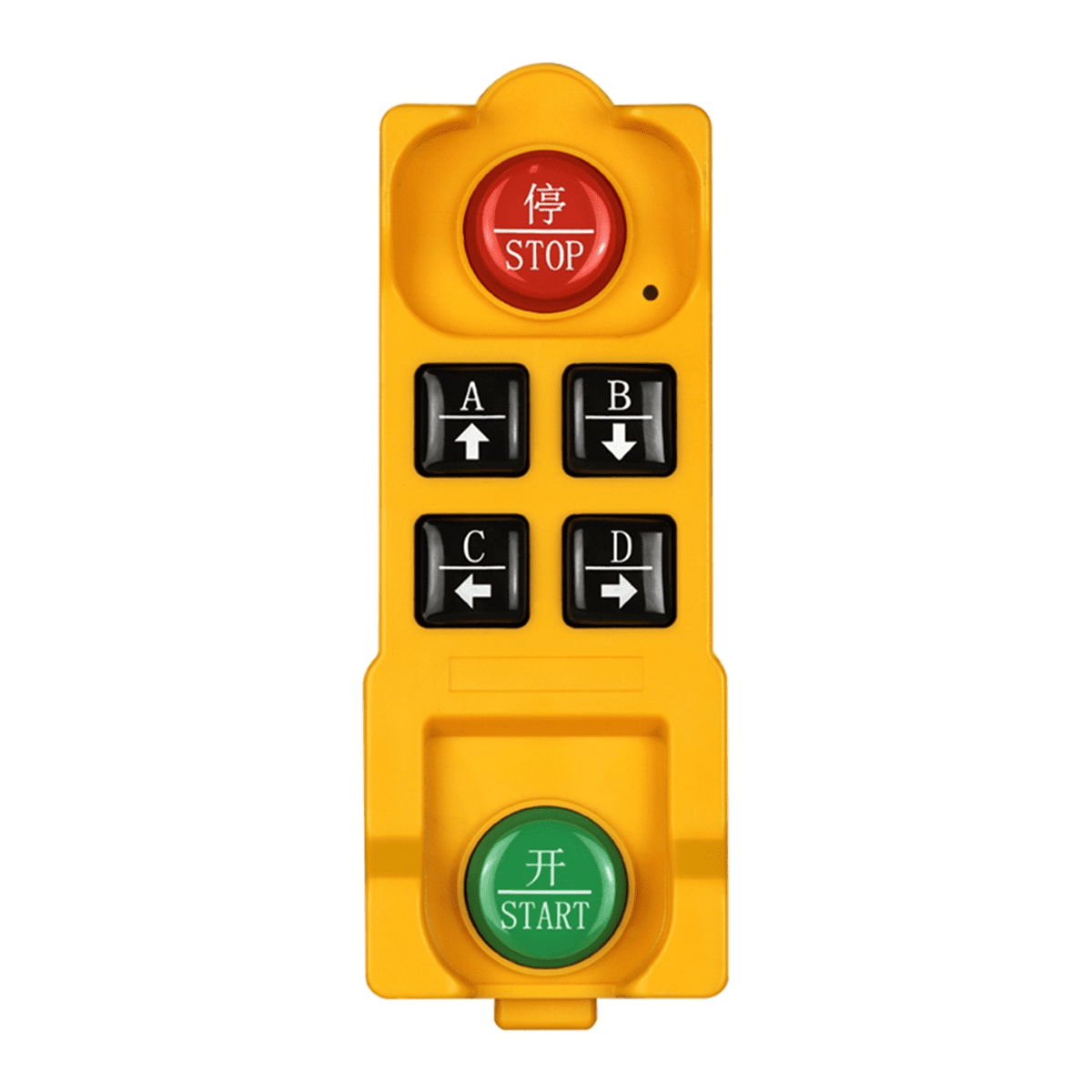

Receiver sensitivity: more than -105dBm<br>Working frequency: 433mhz<br>Output voltage: DC and AC is optional<br>Max load current: 10A<br>About Working way:<br>Working way changed by Learning button<br>Momentary: the Learning Button 1 times.<br>Relay: and hold - On; Release - .<br>Toggle: the Learning Button 2 times.<br>Relay: - On; same button again - ·<br>Latched: the Learning Button 3 times.<br>Relay: - On; other button - .<br>2channel Momentary +2channel Latched: the Learning Button 4 times.<br>2channel Momentary +2channel Toggle: the Learning Button 5 times.<br>2channel Toggle +2channel Latched: the Learning Button 6 times.<br>About Remote Control Transmitter:<br>1.Buttons: 4 Buttons<br>2.Working Voltage: AA x 2 battery, batterynot included<br>3.Operating frequency:433MHz<br>4.Remote Distance: 200-1000M<br>5.Operating Current: 13 mAh<br>6.Encode: EV1527 code<br>Color: white+orange<br>Material: ABS<br>Due to different product batches, the appearance may be different, which does not affect use.<br><br>Package Contents:<br>1 x receiver<br>1 x Remote Control<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Clearning: Hold learning button about 8 seconds,indicator light flashes several times and , then remote ,Relay not Respond ,it means clearning code successful.

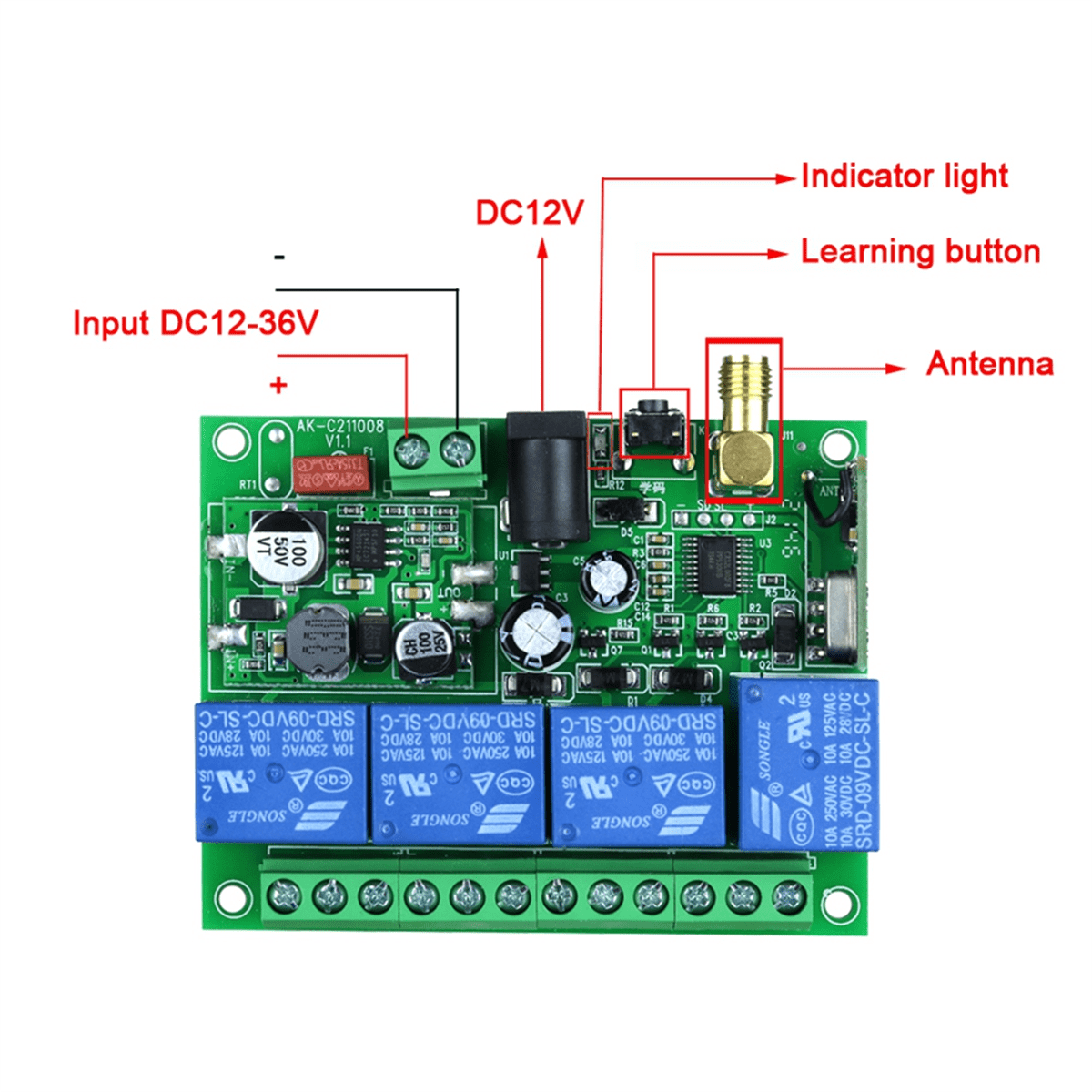

• About Learning and clearing Method:
• 1. Working voltage: DC12V-36V. 2. Quiescent condition: Less than 6mA. 3. Working temperature: -40 Degree +80 Degree
• Learning: learning button, the indicator flashes and , loosen finger, any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times the learning button according to the working way you need)

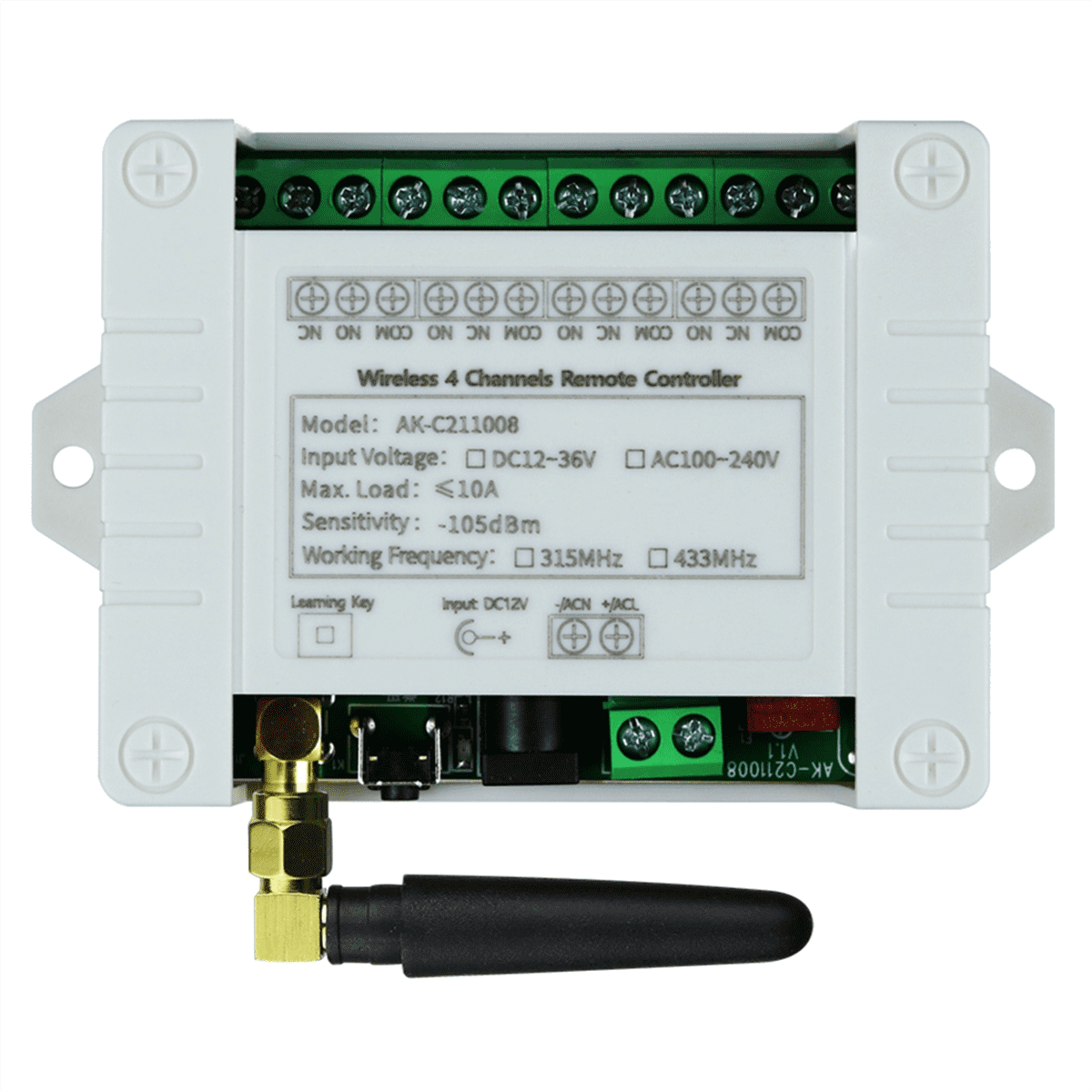

• About Receiver: Model No.: -C211008.
